Select Hardware Transcoder?

Channels DVR Server
#1

Is there a way to select which hardware transcoder is active for Channels DVR on a QNAP TVS-672XT? installed I have a MSI GTX 1050 TI 4GT LP Graphic Cards.
Server name|R**********d
Model name|TVS-672XT|
CPU|Intel(R) Core(TM) i3-8100T CPU, up to 3100 MHz (4 cores, 4 threads)|
Serial number|
BIOS version|Q012AT19|
Total memory|32 GB (31 GB usable)|
Multi-channel support|2 channels - 1 DIMM(s) per channel|
Memory slots|2 (16 GB / 16 GB)|
Firmware version|QTS 5.0.1.2194 Build 20221022|

Hardware Transcoder Probe
×Close
amf
[Parsed_color_0 @ 0x3814f80] size:640x480 rate:25/1 duration:-1.000000 sar:1/1
Input #0, lavfi, from 'color=black:640x480':
Duration: N/A, start: 0.000000, bitrate: N/A
Stream #0:0: Video: rawvideo, 1 reference frame (I420 / 0x30323449), yuv420p, 640x480 [SAR 1:1 DAR 4:3], 25 tbr, 25 tbn, 25 tbc
Unknown encoder 'h264_amf'
exit status 1
nvenc
[Parsed_color_0 @ 0x27f0f80] size:640x480 rate:25/1 duration:-1.000000 sar:1/1
Input #0, lavfi, from 'color=black:640x480':
Duration: N/A, start: 0.000000, bitrate: N/A
Stream #0:0: Video: rawvideo, 1 reference frame (I420 / 0x30323449), yuv420p, 640x480 [SAR 1:1 DAR 4:3], 25 tbr, 25 tbn, 25 tbc
Stream mapping:
Stream #0:0 -> #0:0 (rawvideo (native) -> h264 (h264_nvenc))
Press [q] to stop, [?] for help
[graph 0 input from stream 0:0 @ 0x2837600] w:640 h:480 pixfmt:yuv420p tb:1/25 fr:25/1 sar:1/1 sws_param:flags=2
[h264_nvenc @ 0x281ab00] Cannot load libcuda.so.1
[h264_nvenc @ 0x281ab00] Nvenc unloaded
Error initializing output stream 0:0 -- Error while opening encoder for output stream #0:0 - maybe incorrect parameters such as bit_rate, rate, width or height
Conversion failed!
exit status 1
vaapi+deint
[AVHWDeviceContext @ 0x98be4c0] libva: VA-API version 1.16.0
[AVHWDeviceContext @ 0x98be4c0] libva: va_openDriver() returns 0
[AVHWDeviceContext @ 0x98be4c0] Initialised VAAPI connection: version 1.16
[AVHWDeviceContext @ 0x98be4c0] VAAPI driver: Intel i965 driver for Intel(R) Coffee Lake - 2.4.0.pre1 (2.4.0.pre1).
[AVHWDeviceContext @ 0x98be4c0] Driver not found in known nonstandard list, using standard behaviour.
[Parsed_color_0 @ 0x98cdcc0] size:640x480 rate:25/1 duration:-1.000000 sar:1/1
Input #0, lavfi, from 'color=black:640x480':
Duration: N/A, start: 0.000000, bitrate: N/A
Stream #0:0: Video: rawvideo, 1 reference frame (I420 / 0x30323449), yuv420p, 640x480 [SAR 1:1 DAR 4:3], 25 tbr, 25 tbn, 25 tbc
Stream mapping:
Stream #0:0 -> #0:0 (rawvideo (native) -> wrapped_avframe (native))
Press [q] to stop, [?] for help
[graph 0 input from stream 0:0 @ 0x98fc3c0] w:640 h:480 pixfmt:yuv420p tb:1/25 fr:25/1 sar:1/1 sws_param:flags=2
[auto_scaler_0 @ 0x9900080] w:iw h:ih flags:'bicubic' interl:0
[trim_in_0_0 @ 0x98fd180] auto-inserting filter 'auto_scaler_0' between the filter 'graph 0 input from stream 0:0' and the filter 'trim_in_0_0'
[auto_scaler_0 @ 0x9900080] w:640 h:480 fmt:yuv420p sar:1/1 -> w:640 h:480 fmt:nv12 sar:1/1 flags:0x4
[Parsed_deinterlace_vaapi_2 @ 0x98fb800] Picking 4 (MotionCompensated) as default deinterlacing mode.
Output #0, null, to '/dev/null':
Metadata:
encoder : Lavf58.29.100
Stream #0:0: Video: wrapped_avframe, 1 reference frame, vaapi_vld, 640x480 [SAR 1:1 DAR 4:3], q=2-31, 200 kb/s, 25 fps, 25 tbn, 25 tbc
Metadata:
encoder : Lavc58.54.100 wrapped_avframe
No more output streams to write to, finishing.
frame= 2 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.12 bitrate=N/A speed=35.8x
video:1kB audio:0kB subtitle:0kB other streams:0kB global headers:0kB muxing overhead: unknown
Input file #0 (color=black:640x480):
Input stream #0:0 (video): 4 packets read (1843200 bytes); 4 frames decoded;
Total: 4 packets (1843200 bytes) demuxed
Output file #0 (/dev/null):
Output stream #0:0 (video): 2 frames encoded; 2 packets muxed (1072 bytes);
Total: 2 packets (1072 bytes) muxed
success!
vaapi@/dev/dri/renderD128
[AVHWDeviceContext @ 0x8e4c400] libva: VA-API version 1.16.0
[AVHWDeviceContext @ 0x8e4c400] libva: va_openDriver() returns 0
[AVHWDeviceContext @ 0x8e4c400] Initialised VAAPI connection: version 1.16
[AVHWDeviceContext @ 0x8e4c400] VAAPI driver: Intel i965 driver for Intel(R) Coffee Lake - 2.4.0.pre1 (2.4.0.pre1).
[AVHWDeviceContext @ 0x8e4c400] Driver not found in known nonstandard list, using standard behaviour.
[Parsed_color_0 @ 0x8e5bcc0] size:640x480 rate:25/1 duration:-1.000000 sar:1/1
Input #0, lavfi, from 'color=black:640x480':
Duration: N/A, start: 0.000000, bitrate: N/A
Stream #0:0: Video: rawvideo, 1 reference frame (I420 / 0x30323449), yuv420p, 640x480 [SAR 1:1 DAR 4:3], 25 tbr, 25 tbn, 25 tbc
Stream mapping:
Stream #0:0 -> #0:0 (rawvideo (native) -> wrapped_avframe (native))
Press [q] to stop, [?] for help
[graph 0 input from stream 0:0 @ 0x8e88e40] w:640 h:480 pixfmt:yuv420p tb:1/25 fr:25/1 sar:1/1 sws_param:flags=2
Output #0, null, to '/dev/null':
Metadata:
encoder : Lavf58.29.100
Stream #0:0: Video: wrapped_avframe, 1 reference frame, yuv420p, 640x480 [SAR 1:1 DAR 4:3], q=2-31, 200 kb/s, 25 fps, 25 tbn, 25 tbc
Metadata:
encoder : Lavc58.54.100 wrapped_avframe
No more output streams to write to, finishing.
frame= 3 fps=0.0 q=-0.0 Lsize=N/A time=00:00:00.12 bitrate=N/A speed=94.3x
video:2kB audio:0kB subtitle:0kB other streams:0kB global headers:0kB muxing overhead: unknown
Input file #0 (color=black:640x480):
Input stream #0:0 (video): 4 packets read (1843200 bytes); 4 frames decoded;
Total: 4 packets (1843200 bytes) demuxed
Output file #0 (/dev/null):
Output stream #0:0 (video): 3 frames encoded; 3 packets muxed (1608 bytes);
Total: 3 packets (1608 bytes) muxed
success!
vaapi@/dev/dri/renderD129
[AVHWDeviceContext @ 0x9a87400] libva: VA-API version 1.16.0
DRM_IOCTL_I915_GEM_APERTURE failed: Invalid argument
Assuming 131072kB available aperture size.
May lead to reduced performance or incorrect rendering.
get chip id failed: -1 [22]
param: 4, val: 0
DRM_IOCTL_I915_GEM_APERTURE failed: Invalid argument
Assuming 131072kB available aperture size.
May lead to reduced performance or incorrect rendering.
get chip id failed: -1 [22]
param: 4, val: 0
[AVHWDeviceContext @ 0x9a87400] libva: driver init failed
[AVHWDeviceContext @ 0x9a87400] libva: va_openDriver() returns 18
[AVHWDeviceContext @ 0x9a87400] Failed to initialise VAAPI connection: 18 (invalid parameter).
signal: segmentation fault

For plex to use the second transcoder I had to edit a config file in the plex directory...

let me know if more information is needed.

#2

Can you screenshot how this appears in QNAP under Resource Monitor > System Resources > Graphics Card

#3

I think the fix is something like this:

https://forum.qnap.com/viewtopic.php?t=167052&p=822648#p822456

If I understand you're trying to use nvidia gpu encoding? That requires libcuda which cannot be found above:

#4

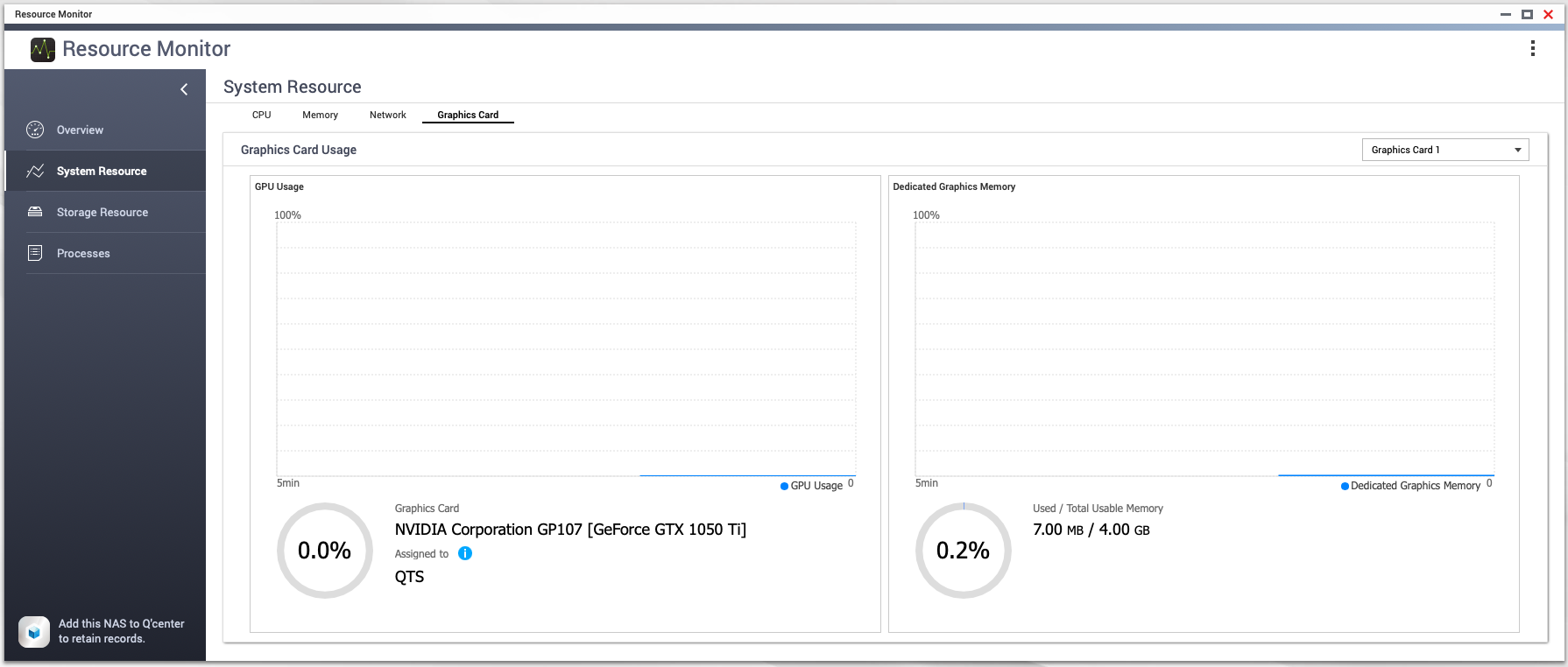

Screenshot 2022-11-18 at 8.10.03 PM
Screenshot 2022-11-18 at 8.10.03 PM1790×762 173 KB

#5

I'll try this and report back. Thanks!

nvenc
[Parsed_color_0 @ 0x32bef80] size:640x480 rate:25/1 duration:-1.000000 sar:1/1
Input #0, lavfi, from 'color=black:640x480':
Duration: N/A, start: 0.000000, bitrate: N/A
Stream #0:0: Video: rawvideo, 1 reference frame (I420 / 0x30323449), yuv420p, 640x480 [SAR 1:1 DAR 4:3], 25 tbr, 25 tbn, 25 tbc
Stream mapping:
Stream #0:0 -> #0:0 (rawvideo (native) -> h264 (h264_nvenc))
Press [q] to stop, [?] for help
[graph 0 input from stream 0:0 @ 0x3305600] w:640 h:480 pixfmt:yuv420p tb:1/25 fr:25/1 sar:1/1 sws_param:flags=2
[h264_nvenc @ 0x32e8b00] Loaded Nvenc version 11.1
[h264_nvenc @ 0x32e8b00] Nvenc initialized successfully
[h264_nvenc @ 0x32e8b00] 1 CUDA capable devices found
[h264_nvenc @ 0x32e8b00] [ GPU #0 - < NVIDIA GeForce GTX 1050 Ti > has Compute SM 6.1 ]
[h264_nvenc @ 0x32e8b00] supports NVENC
Output #0, null, to '/dev/null':
Metadata:
encoder : Lavf58.29.100
Stream #0:0: Video: h264 (h264_nvenc) (High), 1 reference frame, yuv420p, 640x480 [SAR 1:1 DAR 4:3], q=-1--1, 400 kb/s, 25 fps, 25 tbn, 25 tbc
Metadata:
encoder : Lavc58.54.100 h264_nvenc
Side data:
cpb: bitrate max/min/avg: 600000/0/400000 buffer size: 800000 vbv_delay: -1
No more output streams to write to, finishing.
frame= 3 fps=0.0 q=24.0 Lsize=N/A time=00:00:00.12 bitrate=N/A speed=1.33x
video:0kB audio:0kB subtitle:0kB other streams:0kB global headers:0kB muxing overhead: unknown
Input file #0 (color=black:640x480):
Input stream #0:0 (video): 4 packets read (1843200 bytes); 4 frames decoded;
Total: 4 packets (1843200 bytes) demuxed
Output file #0 (/dev/null):
Output stream #0:0 (video): 3 frames encoded; 3 packets muxed (230 bytes);
Total: 3 packets (230 bytes) muxed
[h264_nvenc @ 0x32e8b00] Nvenc unloaded
success!

#6

we'll..... not sure what the heck this error is now after I restarted the NAS

vaapi@/dev/dri/renderD129

[AVHWDeviceContext @ 0x9a4e400] libva: VA-API version 1.16.0 DRM_IOCTL_I915_GEM_APERTURE failed: Invalid argument Assuming 131072kB available aperture size. May lead to reduced performance or incorrect rendering. get chip id failed: -1 [22] param: 4, val: 0 DRM_IOCTL_I915_GEM_APERTURE failed: Invalid argument Assuming 131072kB available aperture size. May lead to reduced performance or incorrect rendering. get chip id failed: -1 [22] param: 4, val: 0 [AVHWDeviceContext @ 0x9a4e400] libva: driver init failed [AVHWDeviceContext @ 0x9a4e400] libva: va_openDriver() returns 18 [AVHWDeviceContext @ 0x9a4e400] Failed to initialise VAAPI connection: 18 (invalid parameter).

signal: segmentation fault

#7

D129 won't work. But it looks like nvenc is working now?

#8

my over my head with this sw trouble shooting I'm EE. Little to no linux exp. .... When I monitor the resource panel external graphics card usage for plex (lifetime pass holder) and Channels it just shows 0.0%.. plex was working on my QNAP TVS672N but it crapped out and QNAP sent me a 672XT. haven't gotten plex hd transcoding to work again with the new NAS (followed the same process above, but don't think I needed too) but was also was looking at getting the external gpu hardware transcoding working for Channels DVR. maybe ill try again tomorrow.... thanks for the help!!!!

#9

This message means the gpu is being used.

#10

Channels DVR activity shows transcoding is happening when using away from home but it's not using the external GPU from what I can tell. Im inferring this because in Resource Monitor > System Resource > Graphics Card there is no activity when this transcoding is occurring. I'm not even sure this is a Channels DRV issue cause Plex will not work as well. but like I said above I had Plex hardware transcoding (on external GPU) working before my QNAP TVS-672N died and was replaced with TVS-672XT. (had to remove the thunderbolt card to use my external Video Card but have never seen Channels DVR utilizing the external graphics card... oh well.
