Super Glitchy Playback on ABC

Channels DVR Server
#1

I've been having issues the last few weeks trying to watch Jeopardy, DVR'd off an HD antenna on ABC.

I use an HD HomeRun, connected via Ethernet to a Mac Studio Channels server, also on Ethernet. The Mac has plenty of power, and there are no network issues.

I can watch ABC via Channels with no issues, but watching anything from ABC on DVR is a blocky, glitchy mess.

Any ideas?
Log from tonight...

2022/10/20 18:59:30.006404 [DVR] Starting job 1666317570-1 Jeopardy! on ch=[7.1]
2022/10/20 18:59:30.601598 [TNR] Opened connection to 10908928/0 for ch7.1 KABC-DT
2022/10/20 18:59:30.609311 [DVR] Recording for job 1666317570-1 from 10908928 ch7.1 into "TV/Jeopardy!/Jeopardy! S39E29 Second Chance Tournament 2022-10-20-1859.mpg" for 30m59.993342s
2022/10/20 18:59:30.754402 [IDX] Generating video index for job 1666317570-1
2022/10/20 19:30:30.074425 [TNR] Closed connection to 10908928/0 for ch7.1 KABC-DT
2022/10/20 19:30:30.109505 [SNR] Statistics for "TV/Jeopardy!/Jeopardy! S39E29 Second Chance Tournament 2022-10-20-1859.mpg": ss=94%,93%-95% snq=73%,0%-80% seq=45%,0%-100% bps=5698188,0-11162688 pps=487,0-956 sigerr=62%
2022/10/20 19:30:30.109669 [SNR] Buffer statistics for "TV/Jeopardy!/Jeopardy! S39E29 Second Chance Tournament 2022-10-20-1859.mpg": buf=0% drop=0%
2022/10/20 19:30:30.136444 [DVR] Finished job 1666317570-1 Jeopardy!
2022/10/20 19:30:30.187420 [DVR] Waiting 23h28m59.812591s until next job 1666403970-1 Jeopardy!
2022/10/20 19:30:30.292583 [DVR] Processing file-12475: TV/Jeopardy!/Jeopardy! S39E29 Second Chance Tournament 2022-10-20-1859.mpg
2022/10/20 19:30:30.526170 [DVR] Running live commercial detection on file 12475 (TV/Jeopardy!/Jeopardy! S39E29 Second Chance Tournament 2022-10-20-1859.mpg)
2022/10/20 19:33:22.559768 [DVR] Commercial detection for Jeopardy! S39E29 Second Chance Tournament 2022-10-20-1859.mpg finished with 8 markers in 2m52.067634292s (live, 5 threads).
#2

62% of the recording had issues with the signal (reception). You’ll need to reposition your antenna to fix this.

#3

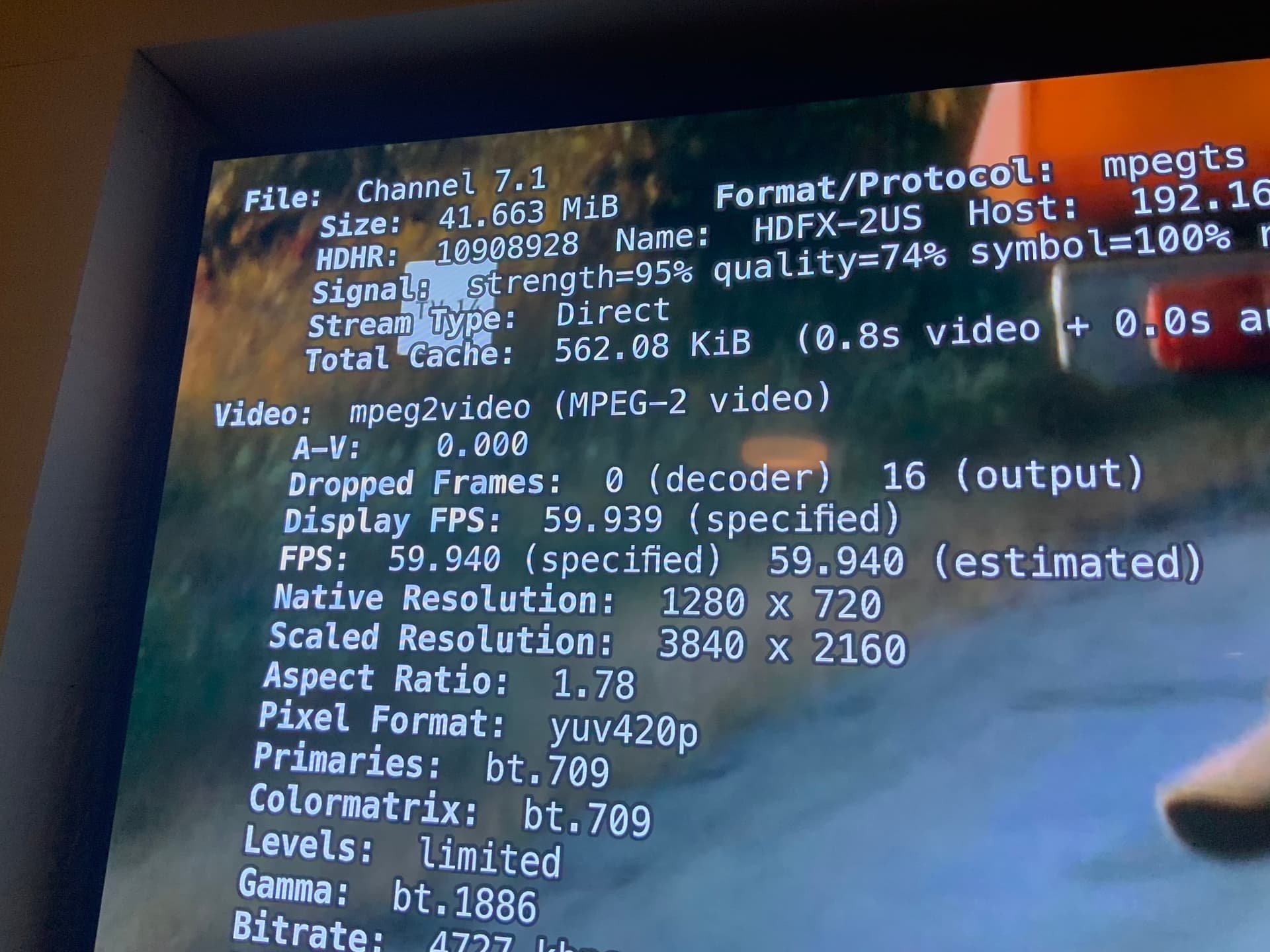

Thanks for the response! That's what I thought, but every time I check the signal manually it's 93-97%. (currently 95% at 9:20 PM - see pic)

I wonder what makes it drop from 7-7:30 PM every night... Maybe I'll switch to trying TVE for local networks.

image1920×1440 230 KB

#4

Might want to go with an LTE filter. I had an issue where mine would drop like 30% for no reason. Havent seen that since I installed the filter. FCC allowed the LTE bands to creep really close to the TV freqs

1 Like
#5

If a LTE filter doesn’t help it could also be an EMI interference issue. Did you replace anything that uses electricity a few weeks ago that you use regularly at that time? Could be anything from a dishwasher to an LED light bulb. Even a neighbors motion porch light have been known to kill tv signals.

#6

This is the way, especially on VHF.

I had a very similar issue on a VHF station in my house. It would regularly drop 20-30% without anything to tie it to. Come to figure out that my son was using a USB-powered bed fan. Turn it on, and it drops. Turn it off, and all was well. I replaced its crappy USB power supply with a better one, and it helped.

It wasn't easy, but search on! :slight_smile:

#7

Thanks for all the ideas - it may be interference - I did re-wire my whole media cabinet a few weeks ago. I didn't change anything out, but did move some stuff around - maybe a power supply got jostled or is now touching a coax or something. I'll check it out, and also try an LTE filter. Lets see what I find!

#8

I few weeks ago I had one channel go super glitchy after a storm. Thinking the storm rotated the antenna I repositioned the antenna to view the channel, but then I started seeing interrupted recordings on all channels. Using the website below I determined that an LTE cell tower went live at the time these problems started. I have an LTE filter arriving today which I expect will solve the problem.

1 Like
