How to recording programs without Channels Plus subscription [tutorial]

It's difficult not to lock yourself up in "I Need Channels DVR subscription" mindset, sure channels server adds lot of convenience factor but 8$ is not cheap especially in countries when citizens don't get salary in dollars and times are difficult and lot of people seeks to spare some money here and there.
Besides, Channels DVR makes sense only in countries that use Gracenote - in other countries there is really no way to have marked things in XMLTV guide as "new" because there is no absolute valid legal source of XMLTV guides and without this "series recording" option makes no sense at all. Gracenote itself has its flaws as Discovery constantly feed their database with wrong description of the shows and after Discovery Time Warner merge situation may be even worse. So this is small tutorial about how to deal with recordings from over-the-air since lot of users here own HDHomeRun anyway. It is also true for any direct link to stream you can find in m3u8 format.

Requirements

  • HDHomeRun
  • ffmpeg - you may install it by using homebrew, macports or download from here
  • Keyboard Maestro (not necessary but good to have)

Recording from stream
This is really straightforward. To record stream from TVP1 I am using command
ffmpeg -i http://192.168.0.18:5004/auto/v1 -c:v copy -c:a copy -f mpegts -t 1:00:00 output.mpeg

-i <source> indicates source url. The schema for HDHome run is http://<ipadress>:5004/auto/v<channel_number>

-c:v -c:a are option for video and audio codec respectively, 'copy' ensures streams is recorded without re-encoding. This is mandatory even if you know source quality is 1080p, this is good practice to force this option because if you download from m3u8 playlist you find on other webpages the quallity of recorded content is matched to quality of broadband speed and it may vary and in result you may get recording with 480p or worse.
-f mpegts not sure about this, I use it most of the time if recording from stream that offers mpeg it's good for both HLS and TS streams
-t hh:mm:ss specifies how long recording should last.

If you want re-encode stream broadcasted in 1080 to 720 to save some space in real time instead of -c:v copy use -c:v h264 in conjunction with -vf scale=1280:720

Scheduling using at command

That method may increase your power usage so better not use this on laptops but most of you use standalone machines for DVR anyway so addition to total energy usage in the mix should be minimal.
On Linux servers at deamon should be enabled by default. On MacOS you should run as root:
launchctl load -w /System/Library/LaunchDaemons/com.apple.atrun.plist to enable at command.

Syntax is really simple - at <time> <date> hit enter the commands you want to launch and finish it with ctrl-D. At supports many formats of entering time and date, so for example if I know TVP1 airs "Ekstradycja" today at 22:00 then I do:
at 22:00
[hit enter]
ffmpeg -i http://192.168.0.18:5004/auto/v1 -c:v copy -c:a copy -f mpegts -t 1:00:00 EkstradycjaS01E01.mpeg
[ctrl-D]

at -l list current jobs at -m <jobnumber> list what tasks are executed in specified job, in my case example listing looks that:

#!/bin/sh
# atrun uid=501 gid=20
# mail sebastian 0
umask 22
TERM_SESSION_ID=w2t0p0:C738113D-0CFF-4117-8A91-4463B5D5A39B; export TERM_SESSION_ID
SSH_AUTH_SOCK=/private/tmp/com.apple.launchd.J4On1F9E71/Listeners; export SSH_AUTH_SOCK
LC_TERMINAL_VERSION=3.4.16; export LC_TERMINAL_VERSION
Apple_PubSub_Socket_Render=/private/tmp/com.apple.launchd.q0QBaW5hFd/Render; export Apple_PubSub_Socket_Render
COLORFGBG=15\;0; export COLORFGBG
ITERM_PROFILE=Darkula; export ITERM_PROFILE
XPC_FLAGS=0x0; export XPC_FLAGS
LANG=pl_PL.UTF-8; export LANG
PWD=/Users/sebastian; export PWD
SHELL=/bin/zsh; export SHELL
TERM_PROGRAM_VERSION=3.4.16; export TERM_PROGRAM_VERSION
TERM_PROGRAM=iTerm.app; export TERM_PROGRAM
PATH=/usr/local/opt/[email protected]/bin:/usr/local/opt/[email protected]/bin:/usr/local/opt/python@2/libexec/bin:/Users/sebastian/Library/Python/2.7/bin:/Users/sebastian/.rvm/gems/ruby-2.6.3@global/bin:/Users/sebastian/.yarn/bin:/Users/sebastian/bin:/Users/sebastian/.rvm/gems/ruby-3.0.0/bin:/Users/sebastian/.rvm/gems/ruby-3.0.0@global/bin:/Users/sebastian/.rvm/rubies/ruby-3.0.0/bin:/usr/local/bin:/usr/local/sbin:/Users/sebastian/.composer/vendor/bin:/opt/local/bin:/opt/local/Library/Frameworks/Python.framework/Versions/2.7/bin:/Users/sebastian/Skrypty:/usr/texbin:/usr/local/bin:/usr/bin:/usr/local/bin:/usr/bin:/bin:/usr/sbin:/sbin:/Library/TeX/texbin:/usr/local/MacGPG2/bin:/tools:/Users/sebastian/.rvm/bin:/Users/sebastian/.fzf/bin; export PATH
LC_TERMINAL=iTerm2; export LC_TERMINAL
COLORTERM=truecolor; export COLORTERM
TERM=xterm-256color; export TERM
HOME=/Users/sebastian; export HOME
TMPDIR=/var/folders/y4/6ggmr4bs5qld7j9n_mlplmtr0000gn/T/; export TMPDIR
USER=sebastian; export USER
XPC_SERVICE_NAME=0; export XPC_SERVICE_NAME
LOGNAME=sebastian; export LOGNAME
ITERM_SESSION_ID=w2t0p0:C738113D-0CFF-4117-8A91-4463B5D5A39B; export ITERM_SESSION_ID
__CF_USER_TEXT_ENCODING=0x0:29:42; export __CF_USER_TEXT_ENCODING
SHLVL=1; export SHLVL
OLDPWD=/Users/sebastian; export OLDPWD
PAGER=less; export PAGER
LESS=-R; export LESS
LSCOLORS=Gxfxcxdxbxegedabagacad; export LSCOLORS
SASS_LIBSASS_PATH=/Users/sebastian/src/libsass; export SASS_LIBSASS_PATH
LDFLAGS=-L/usr/local/opt/libffi/lib; export LDFLAGS
PKG_CONFIG_PATH=/usr/local/opt/libffi/lib/pkgconfig; export PKG_CONFIG_PATH
CPPFLAGS=-I/usr/local/opt/libffi/include; export CPPFLAGS
CORRECT_IGNORE=\�\�\�subl\�\�\�; export CORRECT_IGNORE
rvm_prefix=/Users/sebastian; export rvm_prefix
rvm_path=/Users/sebastian/.rvm; export rvm_path
rvm_bin_path=/Users/sebastian/.rvm/bin; export rvm_bin_path
rvm_version=1.29.12\ \(latest\); export rvm_version
GEM_HOME=/Users/sebastian/.rvm/gems/ruby-3.0.0; export GEM_HOME
GEM_PATH=/Users/sebastian/.rvm/gems/ruby-3.0.0:/Users/sebastian/.rvm/gems/ruby-3.0.0@global; export GEM_PATH
MY_RUBY_HOME=/Users/sebastian/.rvm/rubies/ruby-3.0.0; export MY_RUBY_HOME
IRBRC=/Users/sebastian/.rvm/rubies/ruby-3.0.0/.irbrc; export IRBRC
RUBY_VERSION=ruby-3.0.0; export RUBY_VERSION
_=/usr/bin/at; export _
cd /Users/sebastian || {
	 echo 'Execution directory inaccessible' >&2
	 exit 1
}
OLDPWD=/Users/sebastian; export OLDPWD
ffmpeg -i http://192.168.0.18:5004/auto/v2 -c:v copy -c:a copy -f mpegts -t 01:45:00 LekarkaZRajskiejWyspy-Tajemnica.mpeg

Scheduling using cron
if you know you need recurring task instead of manually setting at jobs that may be cumbersome it's better to use cron deamon available in both linux and Mac in system. to edit cron jobs enter crontab -e and you may enter jobs. Cron syntax is simple every line is 6 arguments - 5 for time specification and 6th for command to be executed. there are many crontab generators online to help. For example
00 22 * * 6 /bin/bash /home/sebastian/skynews.sh
means that on 22:00 only on saturdays (6) run script that records content from SkyNews.

** Scheduling using Keyboard Maestro**

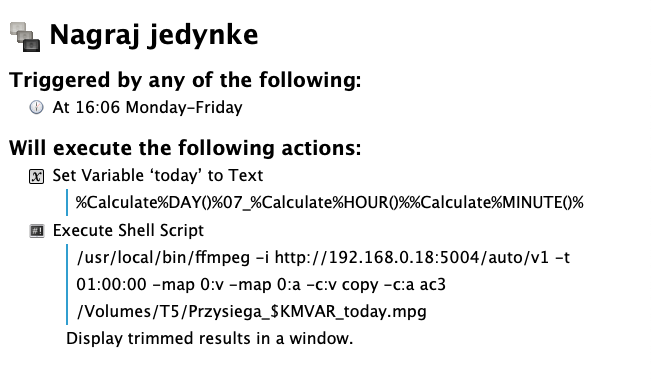

Keyboard Maestro support time-triggered macros so settings is actually simple:
Zrzut Ekranu 2022-08-10 o 16.56.25

when triggering scripts using KM or in better to use absolute path to ffmpeg. In this example command I used -map 0:v and -map 0:a - TVP broadcast most of tv shows with 3 audio tracks - original, voice narrated translation and voice over desriptive for hearing impaired, this setting ensures all tracks are captured.

I undestand this may looks complicated at first but believe me it's really not. I hope this can people spare some money and better know machines they using and to have some fun seeing it really works :slight_smile:

2 Likes

Channels DVR already saved me money I got rid of 2 rental boxes at 9.95 each so do the math... and also the headache of babysitting a DVR.,,, which is priceless.

6 Likes

i'm saving nearly $100 /month because I was able to achieve WAF and then cut the cord. Nobody knew the difference. Never could have done that without Channels.

5 Likes

I think if $8 a month is too expensive for you then you probably dont have an HDHR, computer to host channels on, LED TV, etc. Your DVR strategy has probably not bubbled up to the top of your priority list.

This is an interesting science project but IMHO nothing more. My time is worth more than $8 a month. As others have said, the savings you get from Channels FAR outweigh the expense by a significant factor.

4 Likes

Agreed, well said. I'd never bother with this when such a fantastic solution already exists (because time=money too.)

It's so well worth it. I pay the annual $80 so it works out to about $6.67/month. But I enjoyed reading and learning from this "science project" nonetheless.

1 Like

I do like hearing the diverse opinions and can sympathize with those who have other viewpoints.
I don't live in Poland or have any idea what life is like there today. I've also heard electricity is very expensive in other countries like Germany.
I considered doing the same thing after becoming dissapointed with TiVo and Plex DVR, but am happy to have found Channels DVR after my eyes glazed over reading the ffmpeg manual (But the VLC record button worked! and I found I could script VLC recordings).
I'm sure the world knows we Americans have too many choices when it comes to TV and entertainment.

2 Likes

In my country rental for boxes is often zero, or instead of a box you use CI+ module. But you have your salary in $ so your circumstances are different than mine :slight_smile:

As I suspected, people on this forum are very dissapointing. Especially from USA, when ordinary citizen has no clue what "science" is, considering how much people thinks Earth is flat. All people commenting here get their payment in $ so you really have no clue what I am talking about.

And for the record:
I got my HDHomeRun unit to test for review like 6 years ago and could keep it so it didn't cost me, its old unit no longer sold but it does his job well. I often read on Reddit subforums how people complain of e.g. Youtube TV stream limit because they have 6 or 7 TV sets in a house! In Poland most people have one and many young people watch tv shows on laptop having zero TV sets and can only think on living in rented small flats and may only dream about having big house like most of you have in american suburbs.
Before I get my current Mac Mini thanks to loan from family, which I am still paying for I used 2009 MacBook so be carefull what you saying.

People like me creating solution like Channels DVR, because people like you are too lazy to learn how to use computers for something different than watching Tik-Tok videos.

Thanks @chDVRuser for the only support here.

Ummmmmmmmm..... Yep that's how we all think, you nailed it. Stereotype much?
