LinkPi encoder family

I have a couple of extra Ospreys that I want to get setup. My Uray is full, so I picked up an Env5 to do some testing. There's so many settings compared to the Uray. Can someone provide some basics to get me started?

1 Like

I cant for the life of me get the Elgato working, is it possible the elgato has the issue? Is there a specific USB port it needs to be in for it to work as a second

Link Pi ENC1-V3 with the latest version and a reset of the firmware as well post upgrade

Bad luck again with this. I ordered a new Cam Link and it worked exactly as expected.
The other one seems to be defective.

2 Likes

In the same boat now with TVE sunset for ESPN. How are the minis working out for you? Where did you buy them from?

If you have a relatively modern server, you don't need encoders for ESPN. You can run Prismcast.

I'm still trying to decide if they are a little less smooth than the native app playing on my ONN 4K pro or not. I think they are fine for recordings. I got them here:
https://www.youyeetoo.com/products/linkpi-minienc1?VariantsId=12335

I have a synology, so its super weak for that docker. I set it up to try though, it was terrible performance as expected on the synology celeron. May upgrade to an i7 mini pc soon.

ok gotcha. I wonder if the ENC1-V3 would be smoother on live viewing then? do you use yttv? curious if there would be a difference using a firestick 4k max or an apple tv.

@anon38303228 is your live viewing smooth on your setup? did you have better performance with an apple tv or the osprey boxes?

did you get your linkpi from amz, youyee or ali?

I don't know if anyone has compared the ENC1-V3 to the ENC-MINI If they have I would love to know their impressions as to whether there is any difference. I would guess at 1080p the various streamers are pretty equivalent. To answer your question I am not using yttv. I am on Hulu Live tv.

1 Like

That should be enough for me given the TVE and HDHR setup I currently have. ordered the enc1-v3 from amazon. will take a month to get here. then will get the elgato 4k capture card and onn 4k device.

2 Likes

Anyone have recommendations as to the best LinkPi settings for fast action sports viewing? (single LinkPi, hardwired Gigabit network)

I got this from AI a few months ago and it works for me: h.264 high, 8500 kbps, VBR, 60 fps, GOP 2

Look above for some earlier posts in this thread. Theres a few posts with some some settings. That's what I use.

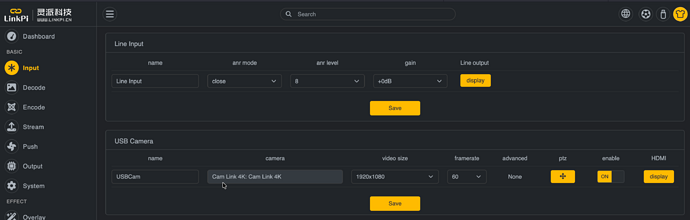

For those using the Elgato Cam Link 4k on an Enc1v3, did it take anything special to get it working? Whenever I plug mine in, i see only gray screens for the previews on the dashboard and the streams for both HDMI and USB don't work. I have another usb capture dongle that works fine at 720p60 but once I swap it the Elgato, it appears to break both HDMI and USB. I've tried all of the USB ports and rebooted several times. I'm on the latest linkpi firmware and the Elgato stick appears to work fine when hooked up to a computer.

Try a factory reset from the LinkPi WebUI.

2 Likes

I just plugged mine in and it worked right off... I bet the factory reset will help.

I have this exact same problem when I plug in any USB 3.0 capture device. The Elgato is a bit too rich for my wallet, but I have tried a couple different Amazon no-name USB 3.0 1080P 60fps capture devices and as soon as I plug them in, everything craps out on the Linkpi. My cheapo USB 2.0 1080P 60fps device works just fine.

Has anyone tried a factory reset, as suggested? Did it work? I'm hesitant to try as I don't like fooling with things which are working. I'd hate to knock something else out in the process...

I did try the factory reset of the link pi to no avail. I do have another cheapo USB capture dongle that claims to be usb 3.0 and it works albeit at a max of 50fps at 1080p. Here are the things that I've tried that haven't worked on the elgato:

  • Factory reset of linkpi via web UI
  • 3-4 firmware updates leading up to the very latest from Linkpi
  • Updating the firmware of the Elgato Cam Link 4k
  • Attaching the elgato via a powered usb 2.0 hub

Regarding the elgato firmware, mine was originally on something that appeared to be from 2018 and through their apps, I got it to update to something from 2020. I found references to a beta firmware from 2023 that someone posted a link to on a forum somewhere but the link appeared to be broken. It'd be interesting to know what firmwares others on.

One other thing that may be relevant is that there appear to be multiple revisions of the cam link 4k. Mine is 20GAM9901 but I've seen 10GAM9901 and 20GAM9902 on ebay listings.
