PBS Feeds

Playground Custom Channels
,
#394

How do I update? I don't use Compose or Portainer. Would a version of the below work (a batch file I was given to update FastChannels):

docker container stop --timeout 30 fastchannels
docker container rm fastchannels
docker image rm ghcr.io/kineticman/fastchannels
docker run -d --name fastchannels --restart unless-stopped -p 5523:5523 -v fastchannels_data:/data ghcr.io/kineticman/fastchannels:latest

Would this work:

docker container stop --timeout 30 vlc-bridge-pbs
docker container rm vlc-bridge-pbs
docker image rm registry.gitlab.com/miibeez/vlc-bridge-pbs
docker run -d --restart unless-stopped --name VLC_Bridge_PBS -p 7777:7777 registry.gitlab.com/miibeez/vlc-bridge-pbs:latest

After doing this, do I have to re-do the various setups I've done in Channels to set location, map IDs to channels in the lineup, etc.?

#395

I checked those instructions, and they seem to be linux-specific, not something I can do as a Windows user. So is the Docker container on the source site updated?

Since I don't use portainer or compose (don't understand them), I only work with docker run commands. I'm thinking of trying to port instructions I was given for updating FastChannels to work with this, but haven't tried it yet - hoping someone more knowledgeable can help.

#396

Yeah that should work except you need to make sure the name of the container matches in all the docker statements. Your docker run statement does not have the same container name.

#397

Ah, I see that I have hyphens in two places and underscores in the third. I'll have to check the official names to make sure I have the correct ones. But does the rest look correct? Are the names case-sensitive?

What about the configuration in Channels - will I have to re-do it from scratch or will it carry over?

#398

Indeed. Its always nice to have another option on hand and combining everything with SLM makes stuff seamless AF if something goes awry

#399

Generic instructions for upgrading any Docker container can be found here.

You don't need to do any changes in Channels or anywhere else; only the backend parsing of the streams within the Container has changed.

#400

Also you can use dockwatch to update. Thats a lot easier than snooping the forums looking for any changes @SageLois

#401

Yep, Dockwatch is recommended in the link above, too.

1 Like
#402

Hmm... I'll need more time to study Dockwatch - looks scary :). Looking over the screen shots, my impression is that it could streamline things for people who already know their way around Docker, but for those who don't, it just adds a further Docker thing to try to make sense of.

#403

Turned out that the container had some auto-generated name, instead of a meaningful name, and that caused my cobbled-together batch file not to work. I did find the instructions @babsonnexus pointed to useful in getting it sorted out, though.

1 Like
#404

I've looked around at SLM and am not clear on what it does. It seems that it's linking in material you already have locally, plus whatever streaming services you subscribe to, but that it's only for providing an interface for watching the content through Channels, vs. recording. Is that correct?

I primarily use Channels only for recording, and auto-import recordings into Sage which is my watching-interface (and where I do most of my OTA and cable recording). For me, Channels is used to fill in gaps.

Am I missing something that is particularly useful for PBS here?

#405

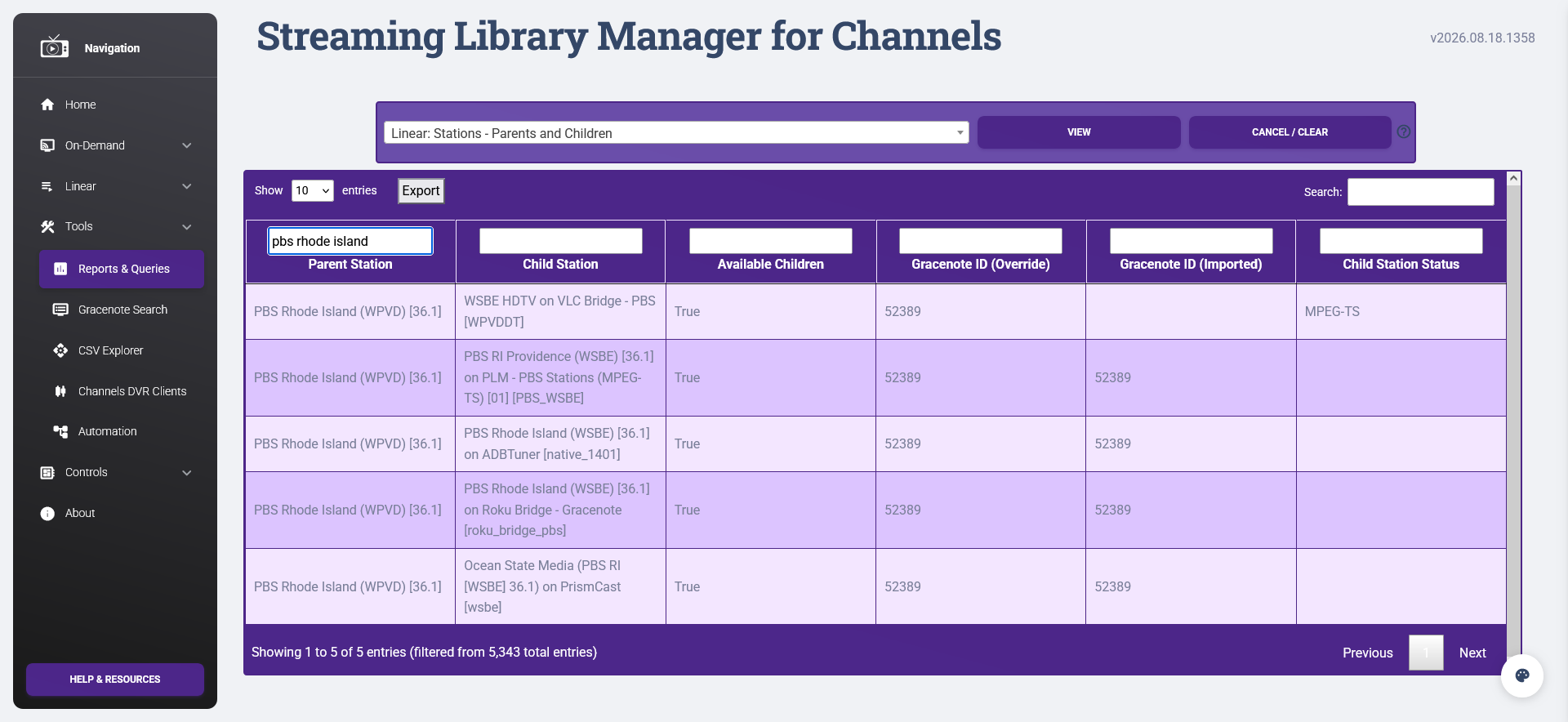

I believe in this case @Jean0987654321 is focusing on the Playlist Manager side of Streaming Library Manager, not the Stream Link/File Manager component. The linked Wiki has all the details, videos, etc... to answer your questions and then some. Like with what happened here with PBS, I didn't have to care because PLM manages several layers of backup station versions:

image1920×884 147 KB

VLC Bridge goes down? No problem, ADBTuner kicks in. ABDTuner is busy? No problem, Roku Bridge takes over. That's not available either? Again, not an issue, PrismCast is there as the last line of defense. And actually, I'm going to be putting some FastChannel bridge stuff in that chain in the near future when that's a little more mature, so I'll have even more layers of protection against disruptions. And at this point, thanks to the fallback feed feature, I literally have a single station in Channels that represents all of these options. No more babysitting for me!

2 Likes
#406

Yep if any TVE Channels gets sacrificed to the DRM Gods, then the next option takes over. The fallback feature has been a godsend for me

#407

Definitely need to study this. I did look at your wiki and there looks like there will be a learning curve with it. Not that that's a problem - just something I'll have to make some time to look at. I'm still pretty new at Channels itself, having used (and continue to use) SageTV since 2009.

#408

I still don't understand the first step to get my PBS stations can someone make a YouTube video or actually explain

#409

Here (as best as I can put together from my notes when I set it up) are the steps I followed:

  1. Install the docker container:
docker run -d --restart unless-stopped --name VLC_Bridge_PBS -p 7777:7777 registry.gitlab.com/miibeez/vlc-bridge-pbs:latest
  1. Go to http://localhost:7777 in a browser

If your server is on a different machine than the one you're using to browse, substitute your server's IP address (e.g. 192.168.1.100) for localhost. If you used a different port number in place of 7777, replace 7777 with that number.

This should display a full playlist link. Mine looks like this:
http://192.168.2.160:7777/pbs/playlist.m3u
Yours will vary based on your server's IP address and selected port
Copy the playlist link.

  1. Create a new "custom channel" using stream format mpeg-ts, the playlist URL you copied as the URL for the source, and your choice for the remaining options.

  2. (This is what tripped me up initially!!)
    In the setup screen for the new custom channel, click "set provider" and pick something that makes sense for your location. You will probably want something like "USA...."

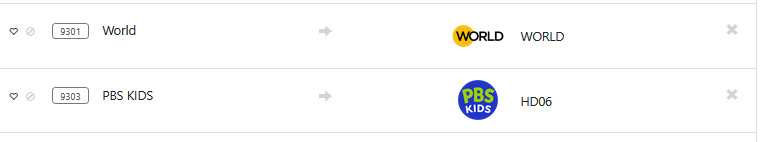

  3. In Channels, Sources, edit the lineup and match each station shown to an actual station, which you can find by searching under "all lineups." This is what will get you EPG listings for each channel. An excerpt of what you should set:

image760×142 13.4 KB

  1. Reload M3U and download EPG

(BTW, another good source for PBS has recently been added to FastChannels. I am currently using both and have a nice collection of PBS stations - in and out of my area - available to me now!

#410

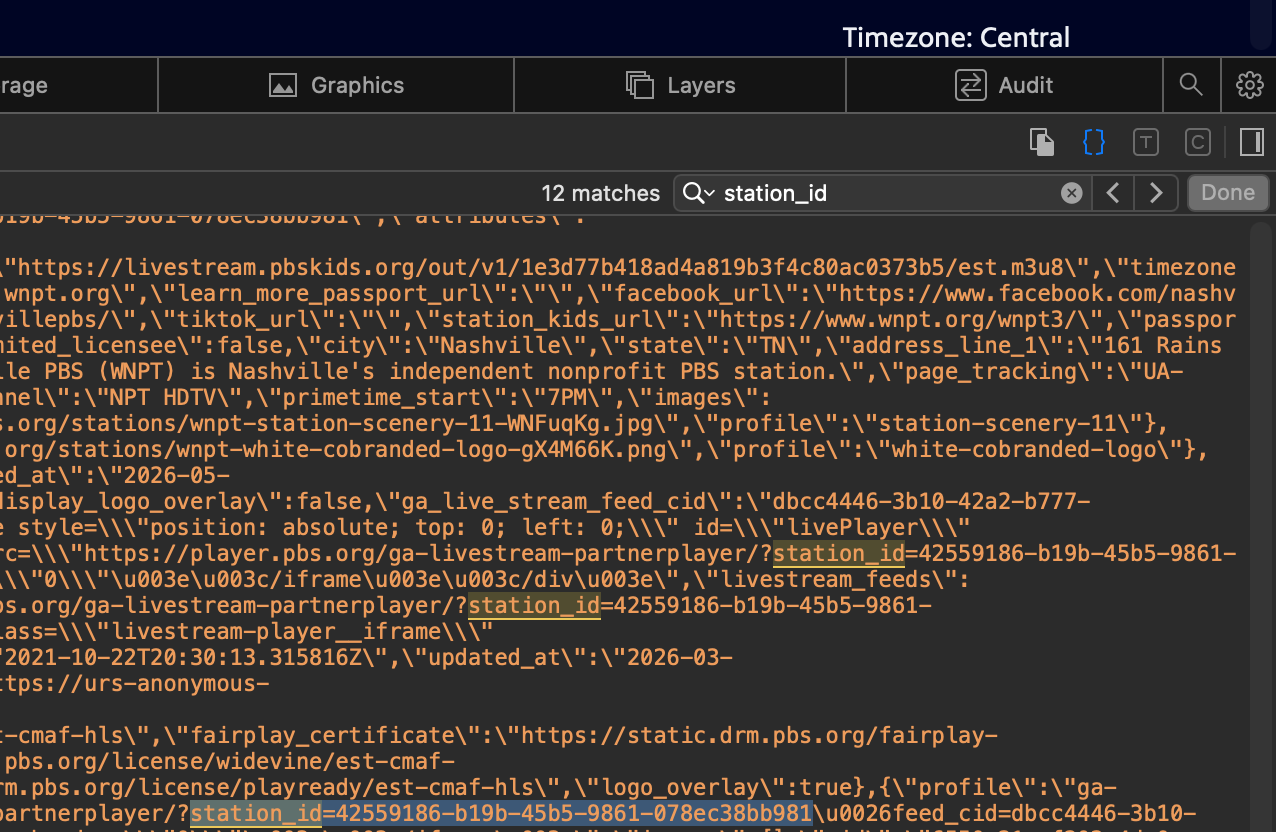

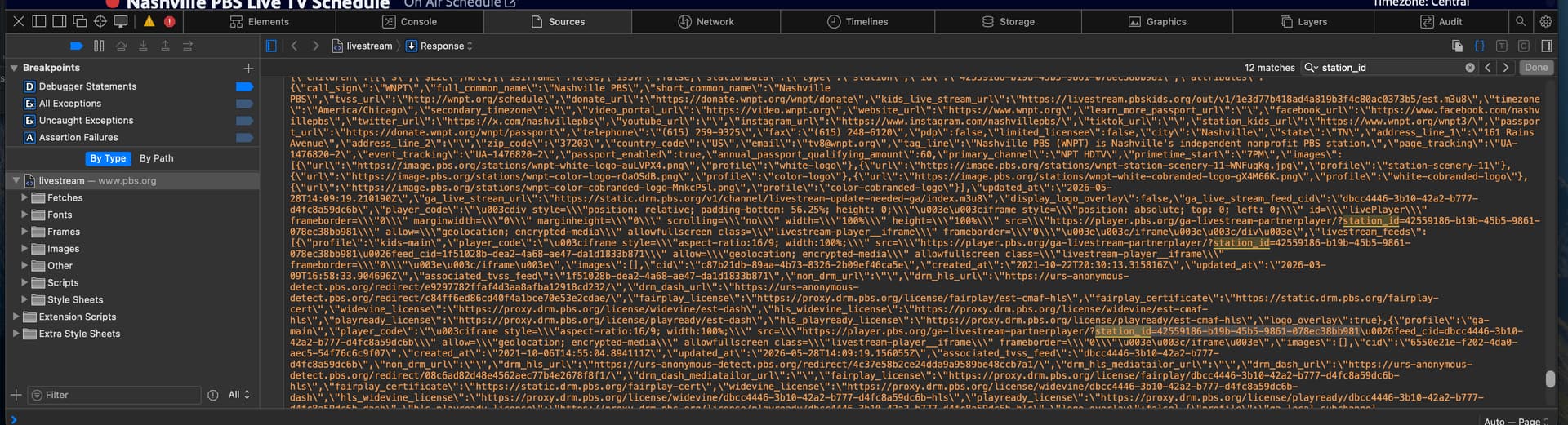

The big step to do this is to get the individual ID codes for each PBS station you want to watch.To do this you have to go to PBS.org and open a live view of a station and then you have to go into View Page Source in your browser to search for the station_ID. You have to copy that string into your settings in Channels. Its a bunch of steps but once you figure out how to find the string its pretty easy.

This is my docker string to download and install the PBS container:

docker run -d --restart unless-stopped --name VLC_Bridge_PBS -p 7778:7777 registry.gitlab.com/miibeez/vlc-bridge-pbs

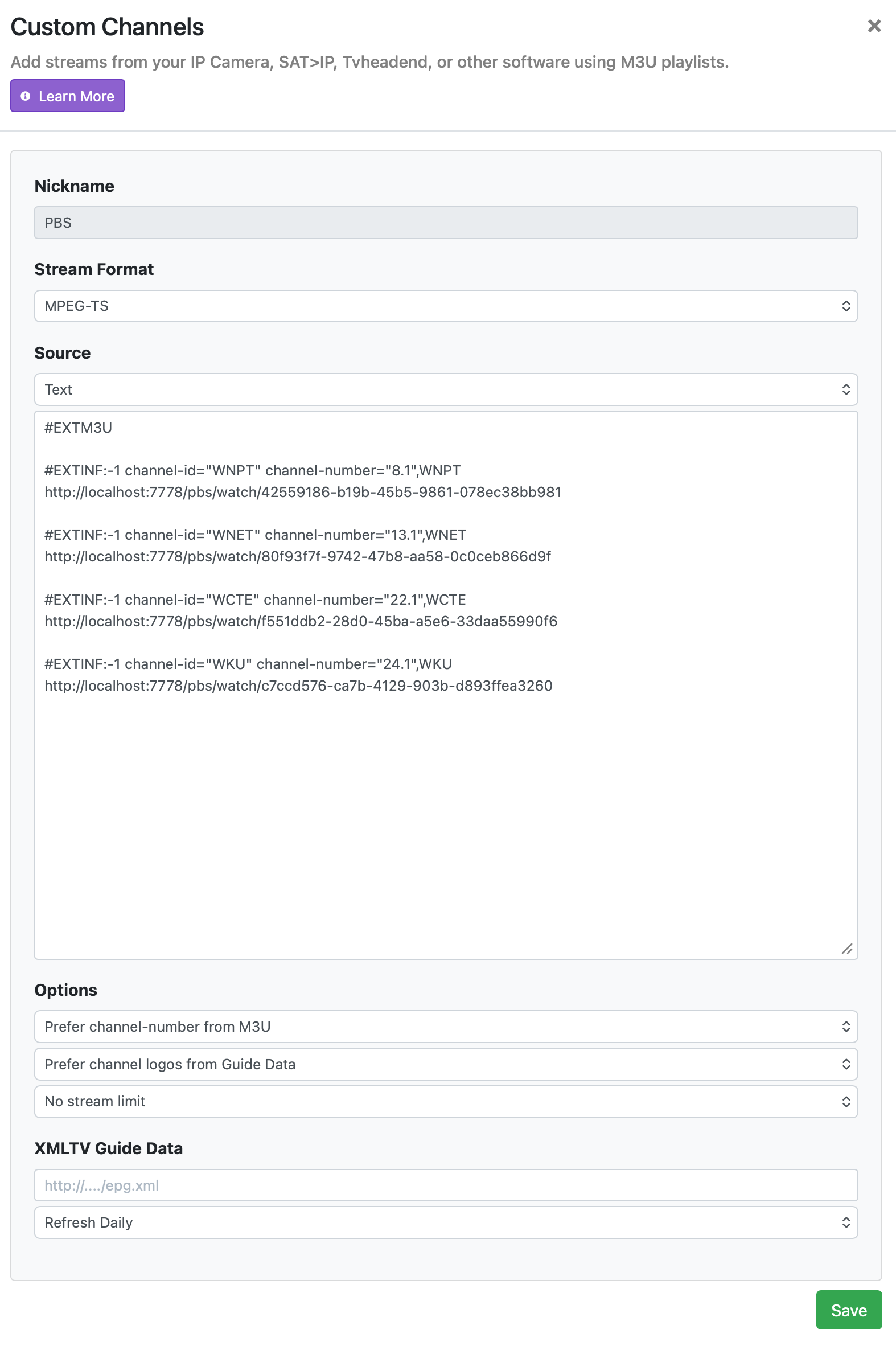

Screen Shot 2026-09-15 at 09.08.27 AM
Screen Shot 2026-09-15 at 09.08.27 AM1574×2364 286 KB

Screen Shot 2026-09-15 at 09.16.55 AM
Screen Shot 2026-09-15 at 09.16.55 AM1276×832 295 KB

Screen Shot 2026-09-15 at 09.19.22 AM
Screen Shot 2026-09-15 at 09.19.22 AM1920×521 230 KB

#412

Or, just use the channel-id from the containers playlist.
It contains the callsign that you can use to override the epg mapping with.

#413

  • First, get a baseline understanding of Docker.

    • What is discussed here and in all situations like this is no different than any other Docker Container/Image. As such, generic instructions and details can be followed.

  • Once you have this, do the fairly easy install of Docker Desktop as a stand-alone application. This is no different that installing any program, so there is no need to stress about this step.

    • If you are installing Docker in Windows, set up Windows Subsystem for Linux (WSL) first by following these directions.

    • Should you be not comfortable with this level of activity, you can use WinUtil-for-Channels to do almost all of this for you.

  • The first thing those new to Docker should do is deploy OliveTin for Channels using the EZ Start method so they can take advantage of Project One-Click, which allows the deployment of this and most other Channels related Docker-based solutions.

    • Most importantly will be Portainer. Even if you are not going to use OliveTin, Portainer is highly, highly, highly recommended to make the installation and management of Docker Images/Containers much easier and straight-forward.

    • Should you not being using OliveTin, then there are directions on the repository for deploying the Container. Even if the directions are just terminal / command line based, that is sufficient, but not recommended. Instead, as noted above, it is suggested to use Portainer for this and all other Docker-based solutions. Here is a Stack you can use for this one in particular:

      services:
  vlc-bridge-pbs:
    image: registry.gitlab.com/miibeez/vlc-bridge-pbs:${TAG}
    container_name: vlc-bridge-pbs
    ports:
      - ${HOST_PORT}:7777
    environment:
      - TZ=${TZ}
    restart: unless-stopped

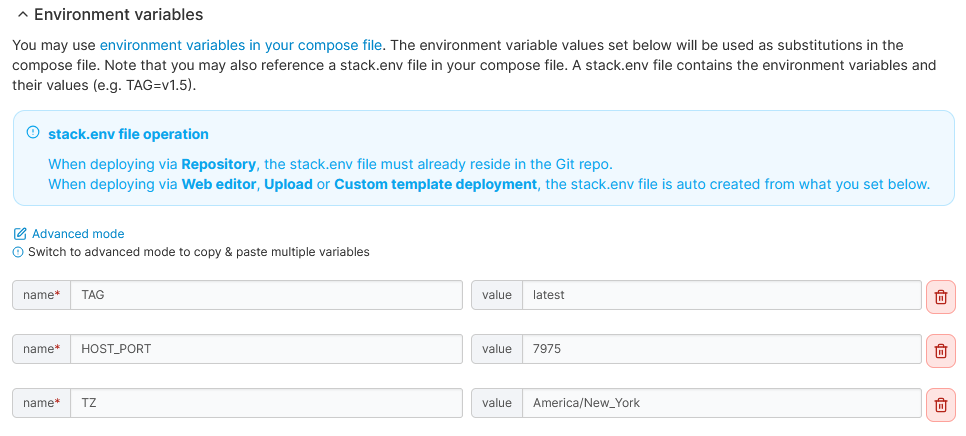

      image966×436 63.1 KB

      It is up to you decide what is appropriate for your variables, most notably the port you want to access the web front-end on and what timezone you are in.

  • Once this or any other Docker Container/Image is deployed, you can use as directed, usually by going to the web front end at the port you have selected and follow directions either on the repository or within the web application itself.

  • Since this one is about adding a streaming source, learn about adding a custom source to Channels.

Or, just let PLM do everything for you, including all the Gracenote mapping, individualized logos, and a whole lot more:

1 Like
#414

I use PLM to map data for all these channels extentions.
Life is so much easier and line-up looks great.
