Oh so many questions on this.........
I'm hitting numerous issues when trying to get this stood up. I'll try and give a concise summary of issues. First, posting my Stacks to verify things are setup correctly:
ESPN4cc4c Stack:
services:
espn4cc4c:
image: ghcr.io/kineticman/espn4cc4c:latest
container_name: espn4cc4c
ports:
- "8094:8094"
extra_hosts:
- "host.docker.internal:host-gateway"
environment:
TZ: America/New_York
VC_RESOLVER_BASE_URL: "http://192.168.0.5:8094"
CC_HOST: "192.168.0.5"
CC_PORT: "5589"
PCAST_SERVER: "192.168.0.5"
PCAST_PORT: "5589"
PORT: "8094"
APP_MODULE: "bin.vc_resolver:app"
VALID_HOURS: "72"
LANES: "40"
ALIGN: "30"
MIN_GAP_MINS: "30"
M3U_GROUP_TITLE: "ESPN+ VC"
VC_M3U_PATH: "/app/out/playlist.m3u"
WATCH_API_KEY: "[hidden]"
volumes:
- /opt/espn4cc4c/data:/app/data
- /opt/espn4cc4c/out:/app/out
- /opt/espn4cc4c/logs:/app/logs
healthcheck:
test: ["CMD", "curl", "-f", "http://localhost:8094/health"]
interval: 30s
timeout: 10s
retries: 3
start_period: 60s
restart: unless-stopped
ESPN4cc4c Environmental Variables:
FILTER_EXCLUDE_NETWORKS=ESPNews,MLB.TV,ESPN2,ESPN Deportes,SEC Network,MLB Network,ESPN,ACCN,ESPNU,NFL Network,ESPN on ABC
FILTER_EXCLUDE_LEAGUES=
FILTER_EXCLUDE_SPORTS=Fishing,Cornhole,Bull Riding,Jai Alai,Dance,Fencing,Bowling
FILTER_EXCLUDE_EVENT_TYPES=
FILTER_EXCLUDE_LANGUAGES=es
FILTER_EXCLUDE_REAIR=true
FILTER_CASE_INSENSITIVE=true
FILTER_PARTIAL_LEAGUE_MATCH=true
FILTER_REQUIRE_ESPN_PLUS=false
ADBTuner Stack:
version: "3.8"
services:
adbtuner:
image: turtletank99/adbtuner:development
container_name: adbtuner
init: true
restart: unless-stopped
ports:
- "5592:5592"
environment:
# Optional: set container timezone (example shown in project discussion)
- TZ=America/New_York
volumes:
# Persistent config + database + adb keys live here
- /opt/adbtuner:/app/.config
And PrismCast Stack:
version: "3.8"
services:
prismcast:
image: ghcr.io/hjdhjd/prismcast:latest
container_name: prismcast
hostname: prismcast
network_mode: host
dns_search: ${DOMAIN:-localdomain}
shm_size: ${SHM_SIZE:-2gb}
devices:
- /dev/dri:/dev/dri
environment:
- PORT=${PORT:-5589}
- VNC_PORT=${VNC_PORT:-5900}
- NOVNC_PORT=${NOVNC_PORT:-6080}
- HDHR_PORT=${HDHR_PORT:-5004}
- DISPLAY_NUM=${DISPLAY_NUM:-99}
- SCREEN_WIDTH=${SCREEN_WIDTH:-1920}
- SCREEN_HEIGHT=${SCREEN_HEIGHT:-1080}
- SCREEN_DEPTH=${SCREEN_DEPTH:-24}
- LIBVA_DRIVER_NAME=${LIBVA_DRIVER_NAME:-iHD}
healthcheck:
test: ["CMD", "wget", "-q", "--spider", "http://localhost:${PORT:-5589}/health"]
interval: 30s
timeout: 10s
retries: 3
start_period: 30s
volumes:
- /opt/prismcast:/root/.prismcast
restart: unless-stopped
Issues:
1. ADBTuner based tuning.
For Channel/Lane 1, it shows Sports Center and I was able to consistently tune it regardless of which of my 5 ONNS I landed on. I could see it navigate through the options in the ESPN app and start Sports Center live. However, for Channel/Lane 3, it shows the Marty & McGhee program and when I click on that, regardless of which ONN device it tries to watch on, I get the following:
2. PrismCast Tuning:
I can tune the channels using PrismCast and get live TV, but it cycles about every 5-7 seconds. What I mean is I'm watching the tuning progress from within a VNC window for Prismcast and the show tunes live as expected, and then 5-7 seconds later that tab closes and relaunches and starts to stream almost immediatly, but it puts in a 1-2 second break between each live session and finally dies after 3 tried I believe. I do have Insecure origins treated as secure enable with the following values: http://192.168.0.5:5523,http://192.168.0.5:8094
Here's the log from Prismcast:
[2026/08/16 12:36:10.644 PM] GET /play?url=http://192.168.0.5:8094/vc/1 from 172.18.0.2 responded 500 in 13513.807 ms.
[2026/08/16 12:36:24.262 PM] [WARN] [0.5-0ty4bd] Video did not reach a playable state within 11000ms.
[2026/08/16 12:36:24.262 PM] [ERROR] [0.5-0ty4bd] Stream setup failed for http://192.168.0.5:8094/vc/1: Waiting failed: 11000ms exceeded.
[2026/08/16 12:36:24.262 PM] [0.5-0ty4bd] Stream ended after 13s (setup failed).
[2026/08/16 12:36:24.263 PM] GET /play?url=http://192.168.0.5:8094/vc/1 from 172.18.0.2 responded 500 in 13240.050 ms.
[2026/08/16 12:36:38.260 PM] [WARN] [0.5-wb7fpp] Video did not reach a playable state within 11000ms.
[2026/08/16 12:36:38.260 PM] [ERROR] [0.5-wb7fpp] Stream setup failed for http://192.168.0.5:8094/vc/1: Waiting failed: 11000ms exceeded.
[2026/08/16 12:36:38.260 PM] [0.5-wb7fpp] Stream ended after 13s (setup failed).
[2026/08/16 12:36:38.261 PM] GET /play?url=http://192.168.0.5:8094/vc/1 from 172.18.0.2 responded 500 in 13362.119 ms.
I never actually see the stream in the client I am testing from (I use Dispatcharr to house all my M3us to organize before sending on to Channels/Emby/Jellyfin/TiviMate).

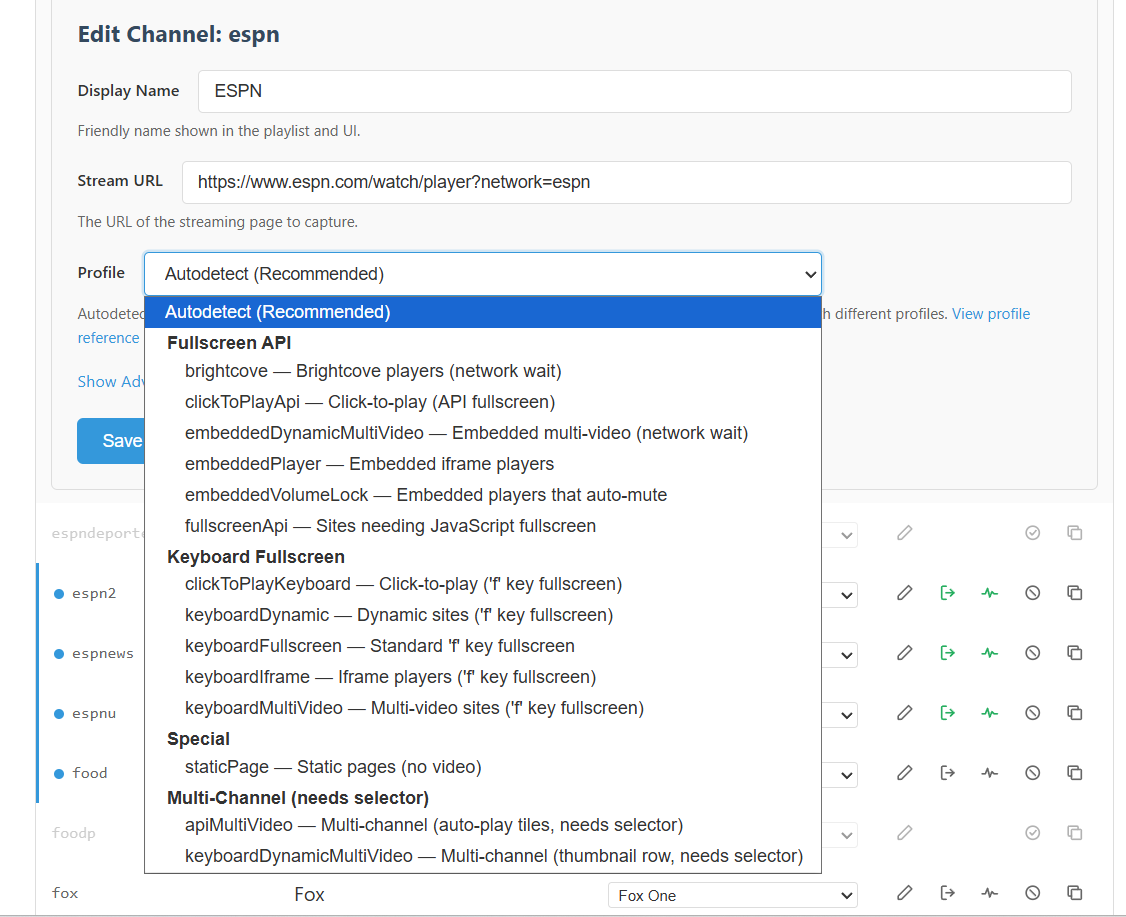

I was tinkering with co-pilot and verified that both Sports Center tuned through the built in ESPN profile within Prismcast (which does work) and the Sports Center listed on ESPN+ Channel 1 (which cycles every 5-7 seconds) are tunning to the same exact link within Prismcast. Co-pilot wanted me to compare the profiles from within Prismcast, but since ESPN4cc4c is just passing along the link, I don't see how I can do that?
3. Guide Info Mismatch
All testing is being done with Prismcast in this problem due to tuning issues with ADBTuner mentioned above.

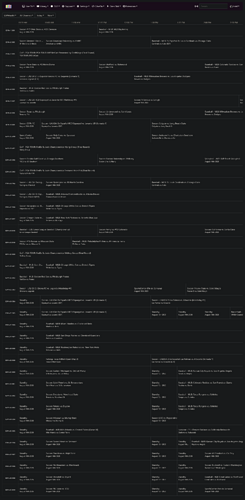

As an exmaple, I'm seeing instances of NFL Replay games in my guide
But when I try and tune to it (channel 9 version), I get the following (channel 10 does show the actual game):
4. Filter Issues:
I setup the environmental variables (basically linear based channel content) shared above but am still seeing programming I am looking to suppress in the ESPN+ channels as I have a separate linear channel for that content and want to just display on those items that cannot be found via the linear channels. Here's my JSON file:
{
"networks": [
{
"name": "ESPNews",
"count": 385
},
{
"name": "MLB.TV",
"count": 358
},
{
"name": "ESPN2",
"count": 337
},
{
"name": "ESPN Deportes",
"count": 331
},
{
"name": "SEC Network",
"count": 291
},
{
"name": "MLB Network",
"count": 268
},
{
"name": "ESPN",
"count": 259
},
{
"name": "ACCN",
"count": 227
},
{
"name": "ESPNU",
"count": 178
},
{
"name": "NFL Network",
"count": 160
},
{
"name": "ESPN Unlimited",
"count": 54
},
{
"name": "@ESPN",
"count": 29
},
{
"name": "ACCNX",
"count": 22
},
{
"name": "SEC Network +",
"count": 16
},
{
"name": "CW Sports",
"count": 15
},
{
"name": "ESPN on ABC",
"count": 10
}
],
"sports": [
{
"name": "Baseball",
"count": 897
},
{
"name": "Football",
"count": 766
},
{
"name": "Soccer",
"count": 478
},
{
"name": "Basketball",
"count": 97
},
{
"name": "Golf",
"count": 65
},
{
"name": "Softball",
"count": 58
},
{
"name": "Action Sports",
"count": 30
},
{
"name": "Volleyball",
"count": 18
},
{
"name": "Lacrosse",
"count": 15
},
{
"name": "Motor Sports",
"count": 10
},
{
"name": "Surfing",
"count": 9
},
{
"name": "Polo",
"count": 9
},
{
"name": "Poker",
"count": 9
},
{
"name": "Dogs",
"count": 8
},
{
"name": "Diving",
"count": 7
},
{
"name": "Hockey",
"count": 6
},
{
"name": "Gymnastics",
"count": 6
},
{
"name": "Boxing",
"count": 6
},
{
"name": "MMA",
"count": 5
},
{
"name": "Fishing",
"count": 5
},
{
"name": "Cornhole",
"count": 5
},
{
"name": "Gaming",
"count": 4
},
{
"name": "Bull Riding",
"count": 4
},
{
"name": "Tennis",
"count": 3
},
{
"name": "Axe Throwing",
"count": 3
},
{
"name": "Pro Wrestling",
"count": 2
},
{
"name": "Jai Alai",
"count": 2
},
{
"name": "Dance",
"count": 2
},
{
"name": "Fencing",
"count": 1
},
{
"name": "Bowling",
"count": 1
}
],
"leagues": [
{
"name": "MLB",
"count": 704
},
{
"name": "NCAA Football",
"count": 477
},
{
"name": "NCAAW Soccer",
"count": 209
},
{
"name": "NFL",
"count": 196
},
{
"name": "Little League Baseball",
"count": 99
},
{
"name": "PGA TOUR",
"count": 63
},
{
"name": "NBA",
"count": 40
},
{
"name": "WNBA",
"count": 35
},
{
"name": "Little League Softball",
"count": 23
},
{
"name": "LALIGA",
"count": 23
},
{
"name": "USL Championship",
"count": 22
},
{
"name": "JLB",
"count": 21
},
{
"name": "XG",
"count": 20
},
{
"name": "Patriot Games",
"count": 19
},
{
"name": "SLSOFT",
"count": 17
},
{
"name": "USL League One",
"count": 16
},
{
"name": "Eredivisie",
"count": 16
},
{
"name": "NCAA Women's Volleyball",
"count": 13
},
{
"name": "WPBL",
"count": 12
},
{
"name": "ALB",
"count": 12
},
{
"name": "JLSOFT",
"count": 11
},
{
"name": "Banana",
"count": 11
},
{
"name": "SLBASE",
"count": 10
},
{
"name": "RB",
"count": 10
},
{
"name": "LALIGA 2",
"count": 10
},
{
"name": "3. Liga",
"count": 10
},
{
"name": "World Surf League",
"count": 9
},
{
"name": "USP",
"count": 9
},
{
"name": "PLL",
"count": 9
},
{
"name": "INTERLB",
"count": 9
},
{
"name": "NECB",
"count": 8
},
{
"name": "NCAAW",
"count": 8
},
{
"name": "NCAAM",
"count": 7
},
{
"name": "NASCAR O'Reilly Auto Parts Series",
"count": 7
},
{
"name": "Community Shield",
"count": 7
},
{
"name": "AUSL",
"count": 6
},
{
"name": "PFL",
"count": 5
},
{
"name": "CWGYM",
"count": 5
},
{
"name": "ACL",
"count": 5
},
{
"name": "USL Cup",
"count": 4
},
{
"name": "UEL Qualifying",
"count": 4
},
{
"name": "PBR",
"count": 4
},
{
"name": "Northern Super League",
"count": 4
},
{
"name": "NWSL",
"count": 4
},
{
"name": "Most Valuable Promotions",
"count": 4
},
{
"name": "College",
"count": 4
},
{
"name": "WATL",
"count": 3
},
{
"name": "USAU",
"count": 3
},
{
"name": "UECL Qualifying",
"count": 3
},
{
"name": "Sport Fishing Championship",
"count": 3
},
{
"name": "NCAAW Lacrosse",
"count": 3
},
{
"name": "NCAAH",
"count": 3
},
{
"name": "NCAA Baseball",
"count": 3
},
{
"name": "Mecum Auctions",
"count": 3
},
{
"name": "HSBASE",
"count": 3
},
{
"name": "CWHOC",
"count": 3
},
{
"name": "WWE NXT",
"count": 2
},
{
"name": "WLL",
"count": 2
},
{
"name": "UCL Qualifying",
"count": 2
},
{
"name": "NCAAM Soccer",
"count": 2
},
{
"name": "Magic City",
"count": 2
},
{
"name": "IDL",
"count": 2
},
{
"name": "CWTEN",
"count": 2
},
{
"name": "CWBV",
"count": 2
},
{
"name": "AVP",
"count": 2
},
{
"name": "NZNBL",
"count": 1
},
{
"name": "NCAA Softball",
"count": 1
},
{
"name": "NCAA Men's Volleyball",
"count": 1
},
{
"name": "Men's International Friendly",
"count": 1
},
{
"name": "CWBWL",
"count": 1
},
{
"name": "CMTEN",
"count": 1
},
{
"name": "CMGYM",
"count": 1
}
],
"event_types": [
{
"name": "UPCOMING",
"count": 3013
},
{
"name": "OVER",
"count": 410
},
{
"name": "LIVE",
"count": 133
}
],
"packages": [
{
"name": "ESPN_PLUS",
"count": 614
},
{
"name": "MLB_TV",
"count": 358
},
{
"name": "MLB_NETWORK",
"count": 268
},
{
"name": "ESPN_PLUS, HULU_BASE",
"count": 2
}
],
"total_events": 3556
}
It appears for some reason that the filters are not being honored when the XML and Channels are being created.
Sorry for the long-winded post, trying to provide all the information I have available to reduce the follow-up questions. And I did solve one problem on my own, I was trying to test Prismcast with VLC on my workstation and finally realized the call from ESPN4cc4c to Prismcast uses 127.0.0.1 in the M3U which meant I couldn't do it from my workstation. Only took me like 10 minutes to figure that one out.
